6125系列贴片保险丝

服务项目：6125系列贴片保险丝

点击次数：10093 次

详细信息：

6125系列贴片保险丝

总序/General：

• 动作快，耐冲击能力高/Fast acting，Inrush withstand capability

• 表面贴装式大电流熔断器/Surface mount high current fuse.

• 电流范围为20-60A/ vailable in ratings of 20 to 60 Amperes

• 耐电压高、Higher voltage rating up to 100VDC

• 尺寸为10.25x3.20mm 表面贴装/10.25mm×3.20mm square shape surface mount

• 操作温度范围宽，为-55°C ~125°C /-55°C ~125°C Operating temperature

•环境适应性强/ Excellent environmental integrity

•增强的热循环耐久性/ Enhanced thermal cycling endurance

•应用场所/Application

•电池包/ attery pack

• 存储系统/Storage system

• 供电电源/Power supply

• 计算机&外围设备/PC & PC peripherals

• 计算机服务器/PC server

• 冷风扇系统/Cooling fan system

• 无线基站/Wireless basestation

• 工业设备/• Industrial equipment

• 通信系统/Telecom system

• 液晶显示器&模块/LCD monitor and modules

• 医疗设备/Medical equipment

电气性能/Electrical Specifications

Part Number	Current Rating (A)	Voltage Rating (V)
6125-0.5A	0.5	125/250
6125-1.0A	1	125/250
6125-1.25A	1.25	125/250
6125-1.5A	1.5	125/250
6125-1.6A	1.6	125/250
6125-2.0A	2.0	125/250
6125-2.5A	2.5	125/250
6125-2.5A	2.5	125/250
6125-3.0A	3.0	125/250
6125-3.15A	3.15	125/250
6125-3.5A	3.5	125/250
6125-4.0A	4.0	125/250
6125-5.0A	5.0	125/250
6125-6.3A	6.3	125/250
6125-7.0A	7.0	125/250
6125-8.0A	8.0	125/250
6125-10.0A	10.0	125/250
6125-12.0A	12.0	125/250
6125-15.0A	15.0	125/250
6125-20.0A	20.0	125/250
6125-6.3A	6.3	125/250
6125-6.3A	6.3	125/250

更多参数如分断能力Interrupting Rating （V）、直流电阻Typical Cold DCR* (mΩ)、熔化热能值Typical I2T ** (A 2sec) 请电联。

* Measured at≤10% rated current and 25℃

** MeltingI2 T at 10 times of rated current

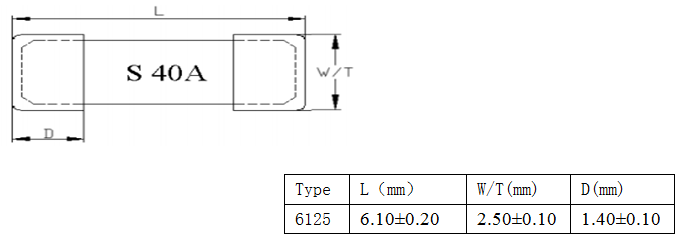

产品尺寸/ Dimensions：

Time Current Curve I2T VS Time Curve

电气特性/Electrical Characteristics

Type	Ampere Rating	% of Current Rating	Opening Time
6125	0.5A~20A	100	Min.4hours
	0.5A~20A	200	Max.120sec
	0.5A~20A	125	1hour Min.

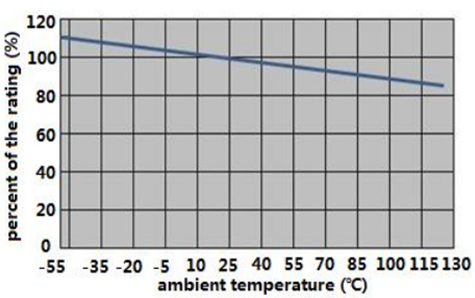

温度脱脂曲线/Temperature Derating Curve

包装Packaging

• 真空包装，每卷1000个/1000 pieces of fuses in emboss taper and reeled on a 178mm(7 inch) reel

Type	A0(mm)	B0(mm)	K0(mm)	P0(mm)	P1(mm)	P2(mm)
6125	2.70±0.10	6.40±0.10	2.70±0.10	4.00±0.10	4.00±0.10	2.00±0.10
Type	E(mm)	F(mm)	D0(mm)	D1(mm)	W(mm)	T(mm)
6125	1.75±0.10	5.50±0.10	1.50±0.10	1.50±0.25	12.00±0.15	0.25±0.05

储存/Storage

该产品储存室内温度是5℃-30℃，湿度是25%RH~60%RH ，用密封的塑料袋，真空包装，远离有害气体跟化学物。使用的时候再打开./•The ambient temperature recommended for storage shall be between 5℃~30℃. •The relative humidity recommended for storage shall be between 25%RH~60%RH. •Sealed plastic bags with desiccant shall be used to reduce the oxidation of the termination and shall only be opened prior to use. •The products shall not be stored in areas where harmful gases containing sulfur or chlorine are present.
