17AM-K Series

17AM-K Series

Product Name17AM-K Series

Hits15362

Product Description

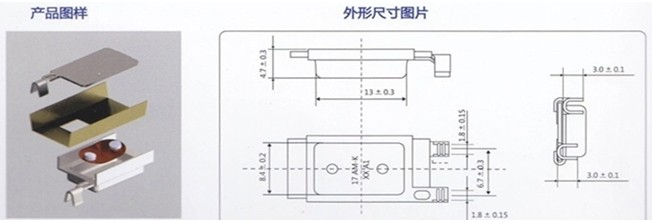

17AM-K&KI71/KI71P is relative compact designed and is operate with Snap Action which is sensed by current and temperature
KI71 can reset automatically after tripping off
KI71P cannot be reset automatically after being tripped off unless it is unplugged
Short circuit caused by contacting metal parts can be eliminated by leading wire with insulation sleeve attached
Applicable Scope

KI71/KI71P is an excess-current thermal protector with compact in size. Main applications of KI71/KI71P are as follows:Motor / ballast for fluorescent lamp /Transformer, Laminator and various sort of household appliances.
