NEC SEFUSE SCHOTT SF-E Series

NEC SEFUSE SCHOTT SF-E Series

Product Name£ºNEC SEFUSE SCHOTT SF-E Series

Hits£º14643

Product Description£º

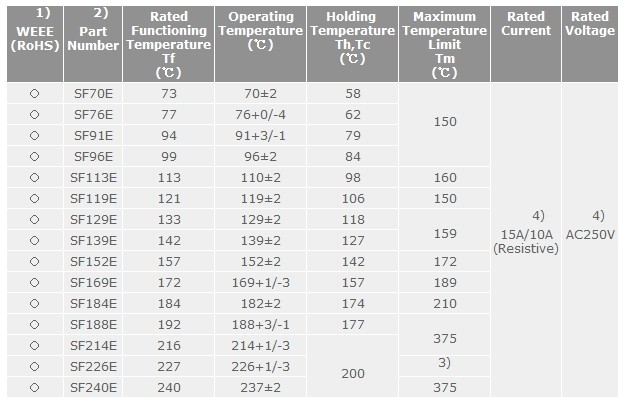

The NEC SF-E Series Rating as below:

SF70E,SF76E,SF91E, SF113E, SF119E,SF129E,SF139E,SF152E,SF169E,SF184E,SF214E, SF226E, SF240E

Reamarks:


1) No use of hazardous substances prescribed by WEEE and RoHS.
With the exception of SF91E, all of the products do not use SVHC prescribed by REACH (46 substances, 15 Dec 2010).
2) Part number indicates thermal cutoffs with standard lead lengths. For long lead length type, add the suffix "-1" at the end of the part number.
3) The maximum temerature limit Tm of SF226E is shown in the following table:
Tm
UL
CSA
VDE
BEAB
CCC
KTL
SF226E
240¡æ
330¡æ
300¡æ
4) The electrical ratings according to the various safety standards are shown in the following table:
Rated voltage
UL
CSA
VDE
BEAB
CCC
KTL
PSE7)

AC120V

15A
(Inductive)






(Resistive)
20A
(Resistive)
AC240V
15A
(Resistive)







AC250V
10A
(Resistive)

15A
(Inductive)
(Resistive)
10A
10A
10A
10A
10A
15A
(Resistive)
15A
15A
15A
15A
15A
17A
(Resistive)







AC277V
15A
(Resistive)







5) The following SF-types have passed the Conductive Heat Aging Test (CH) specified by the UL safety standard : SF169E, SF184E, SF188E, SF214E, SF226E and SF240E.
6) SF/E is available for rating 10A and 15A marking for CCC standard. Please select suitable rating product according to the specification of end-application.
7) SF/E is available for rating 10A and 15A marking for PSE standard. Rating 10A marking is applied for Article 1, and Rating 15A marking is applied for Article 2 of the technical requirement of the METI ordinance J60691. Please select suitable rating product according to the specificatoin of end-application.
